Double Trunnion MultiLug
SPREADER BEAMS

A revolution in heavy load lifting that is now a reality.

NEW OX-DTML FOR LIFTING EXTREMELY HEAVY LOADS

OX & RUD (Double Trunnion Multi-Lug) is an innovative end terminal system for the OX Spreader Beam range of spreader beams, which is particularly versatile for lifting any type of load but has been specially designed for lifting extremely heavy loads (heavy-duty lifting applications).



The OX-DTML has been developed to offer greater efficiency, safety and reliability in the handling of heavy loads, but with added versatility by responding to the specific operational need of the sector to be able to use either shackles to connect lifting accessories such as slings or grommets, or to connect these slings directly to this terminal thanks to the round pins called Trunnions. These eliminate the need for shackles, which are very expensive in heavy-duty lifting.

Play Video
Izado y manipulación de ferralla diseñado específicamente para trabajos de obra civil. Lifting and handling system for rebar, specially designed for civil engineering applications.Play Video

The OX-DTML In Detail

Izado y manipulación de ferralla diseñado específicamente para trabajos de obra civil. Lifting and handling system for rebar, specially designed for civil engineering applications.

WHAT IS THE OX-DTML?

The OX-DTML is a Bimodal End Terminal with top and bottom lifting lugs, both for shackles and directly via slings or grommets to trunnions.

It is compatible with the OX-Spreader Beam range. Currently available from the SB-250 to the SB-1350, a range where its versatility is best exploited. Actual capacities: 250, 400, 600, 800 and 1350 tonnes!. Other sizes available on request.

Izado y manipulación de ferralla diseñado específicamente para trabajos de obra civil. Lifting and handling system for rebar, specially designed for civil engineering applications.
Izado y manipulación de ferralla diseñado específicamente para trabajos de obra civil. Lifting and handling system for rebar, specially designed for civil engineering applications.
Izado y manipulación de ferralla diseñado específicamente para trabajos de obra civil. Lifting and handling system for rebar, specially designed for civil engineering applications.

HOW DOES THE OX-DTML WORK?

It has longitudinally oriented shackle lugs that allow it to tilt to orient itself within the range of geometries possible in the OX spreader beam range. At the same time, it has a trunnion-type housing that can be hooked onto a pair of slings or grommets, which are also smaller than if we used a single one and also eliminate the need for a shackle.

This feature allows for a wide range of combinations that increase its versatility.

Izado y manipulación de ferralla diseñado específicamente para trabajos de obra civil. Lifting and handling system for rebar, specially designed for civil engineering applications.

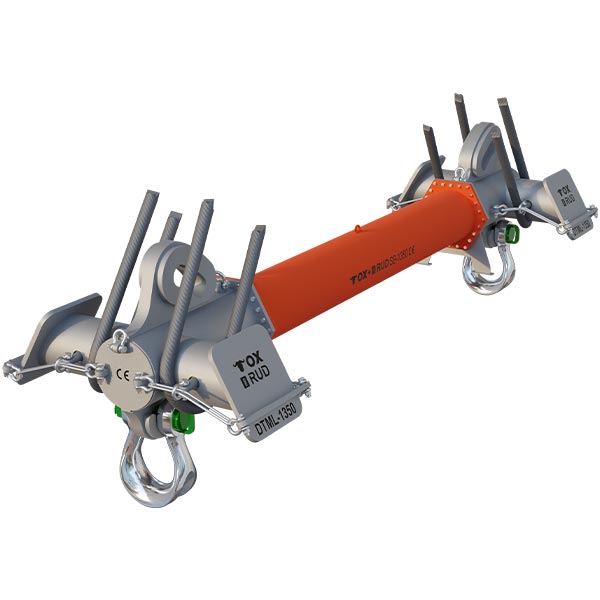

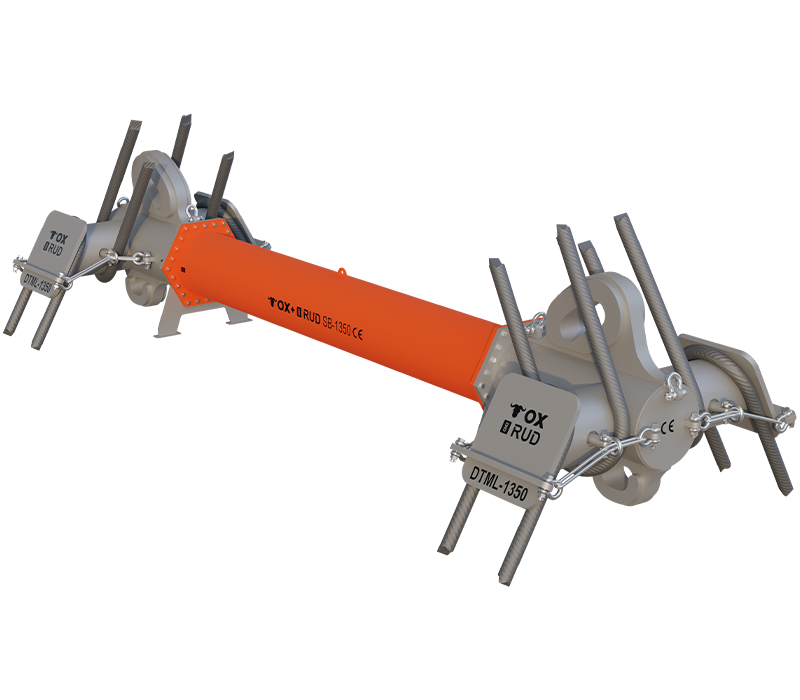

MODEL SHOWN: OX SB-1350
Configuration: 45º

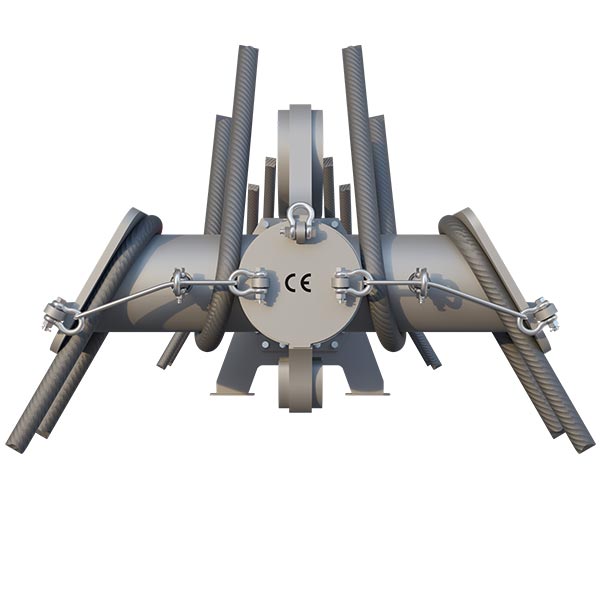

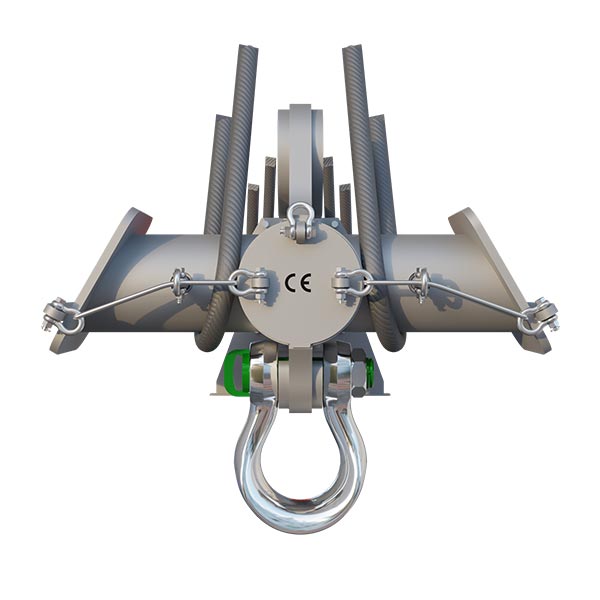

45º configuration. Different combinations of lifting configurations using shackles and grommets.

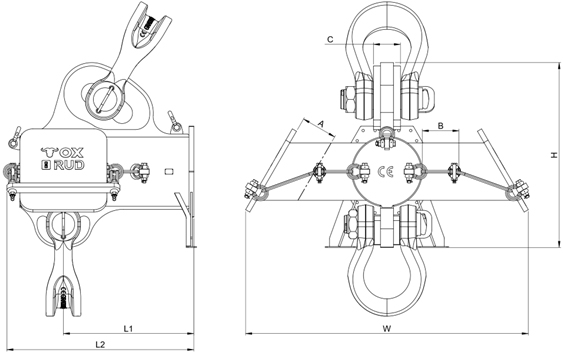

TECHNICAL INFORMATION
Compatible with the OX Spreader Beam range from SB-250 to SB-1350.

Model
Code
L1
(mm)
L2
(mm)
W
(mm)
H
(mm)
A
(mm)
B
(mm)
C
(mm)
Top
Shackle
Bottom
Shackle
Weight
(kg)*
DTML-25080220250N1000140018101450200216140Wide body
200t		Wide body
125t		1750
DTML-40080220400N1000145522451640265265170Wide body
300t		Wide body
200t		2950
DTML-60080220600N1500200024451840330250210Wide body
400t		Wide body
300t		4050
DTML-80080220800N1500203027701865365320240Wide body
500t		Wide body
400t		4950
DTML-1350802213500N1500213532502130420420310Wide body
800t		Wide body
700t		8750

*Weight without accessories

OTHER ACCESSORIES:

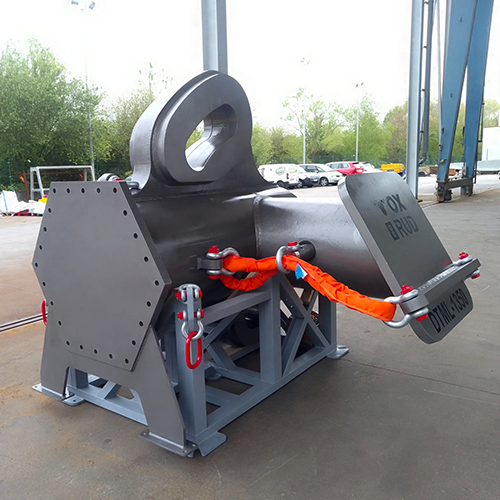

  • Transport and storage stand (stackable depending on model)
  • Accessories for safety separator bar

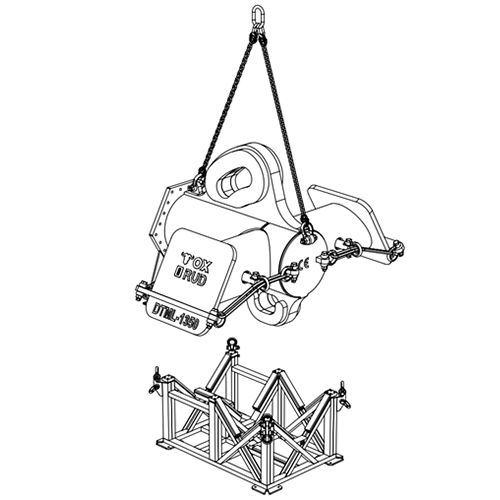

  • Lifting accessories for the terminal itself
